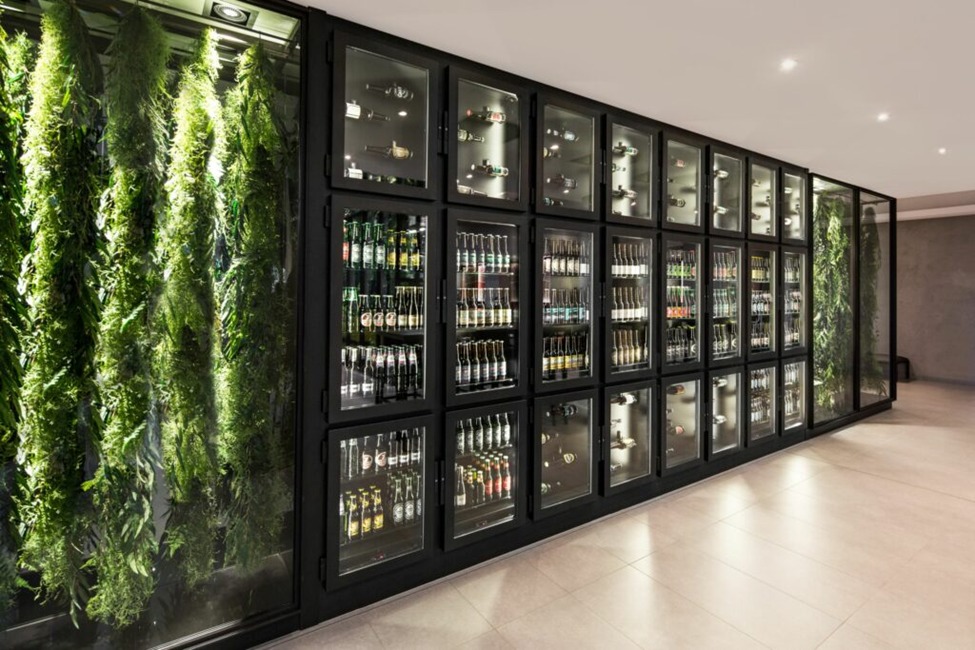

3000 SERIES
Steel and Glass Modular Wine
Doors and Vision Lights
The WFD-3000 vs. 3000 Series is the crown jewel of the industry—our premier fully thermally broken,
pre-glazed modular steel and glass door and vision light system. Combining advanced thermal
performance, high-performance insulated glass, and refined architectural detailing, the 3000
Series delivers an unmatched balance of performance, strength, and elegance.
The pressure-framed system and availability of large-format glass panels allow the 3000 Series to span unrivaled widths and heights, creating expansive architectural openings without compromising structural integrity or visual refinement.
The pressure-framed system and availability of large-format glass panels allow the 3000 Series to span unrivaled widths and heights, creating expansive architectural openings without compromising structural integrity or visual refinement.
System Construction:
- Doors fabricated from 2-1/2” × 1-1/2” fully welded/ seamless, thermally enhanced steel members
- Four-sided, thermally broken/ core-filled steel door frame, fully weathered
- 1-1/2” × 4-1/4” welded and buffed modular steel framing system supplied factory pre-glazed
- Modular construction allows coordinated integration of doors, vision lights, corners featuring fixed glazing
Glazing:
- 1” insulated low iron tempered safety glass – Argon Filled
Hardware (Standard):
- (3-4) 4-1/2” Hydraulic Self Closing Hinges with HO Feature
- 36” offset square pull handle – Single Side
- Jamb Mounted – Mortised Adams Rite Dead Latch/ Key
- Proprietary magnetic / ball-bearing catch
Options:
- Machined, core-filled 90° corner posts
- Core-filled wall posts
Installation:
- Factory pre-glazed modular/ pre-hung assemblies
- Installation hardware provided
Estimated Cost:
$220.00 per sq. ft. (excluding shipping)
